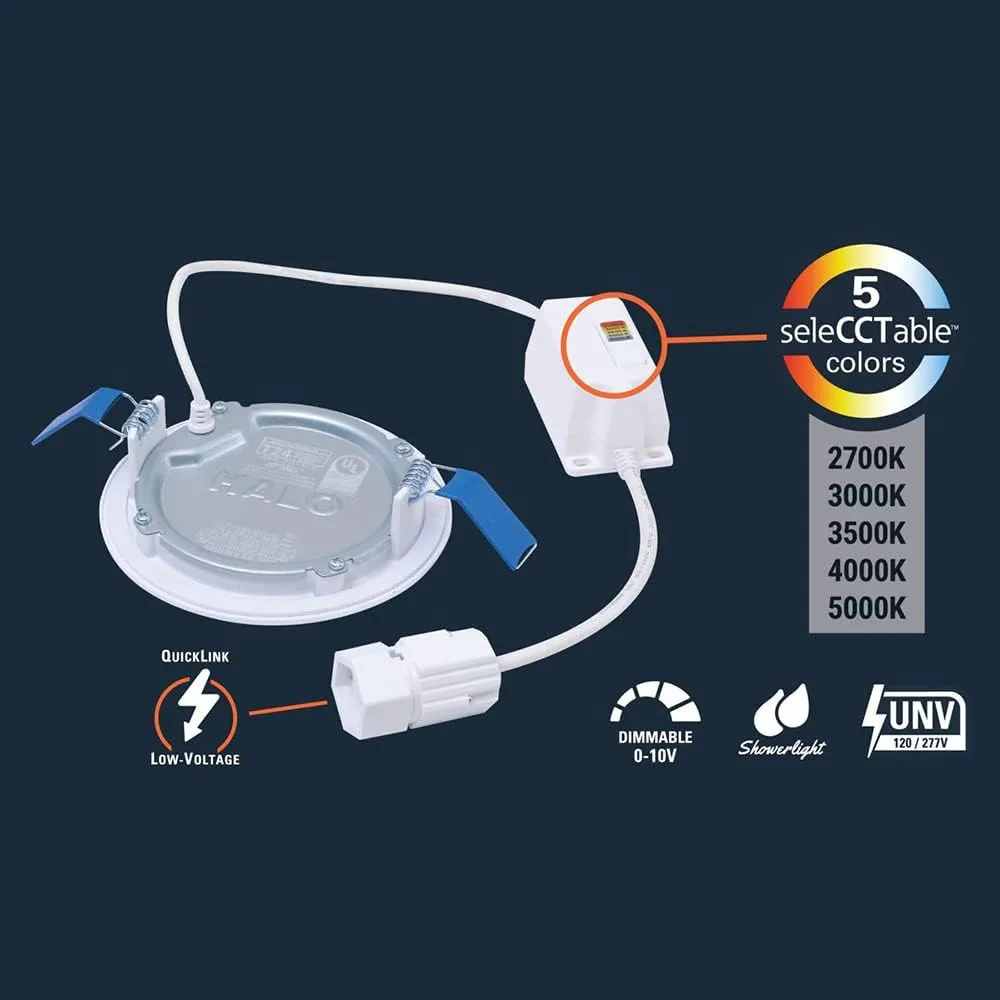

- SUITABLE FOR ANY ROOM: Choose your color temperature using a simple switch during installation. 2700K (Soft White), 3000K (Bright White), 3500K (True White), 4000K (Cool White), 5000K (Daylight). 605 lumens of brightness make these a great choice for any room. 90 CRI brings out true colors. Long-lasting with 50,000 hours of maintenance-free operation.

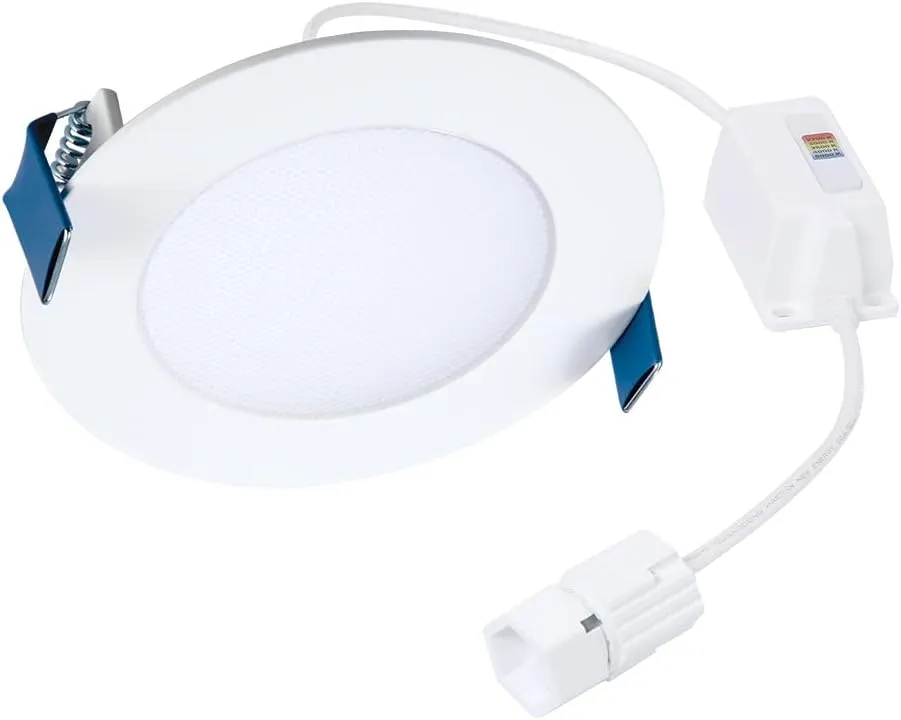

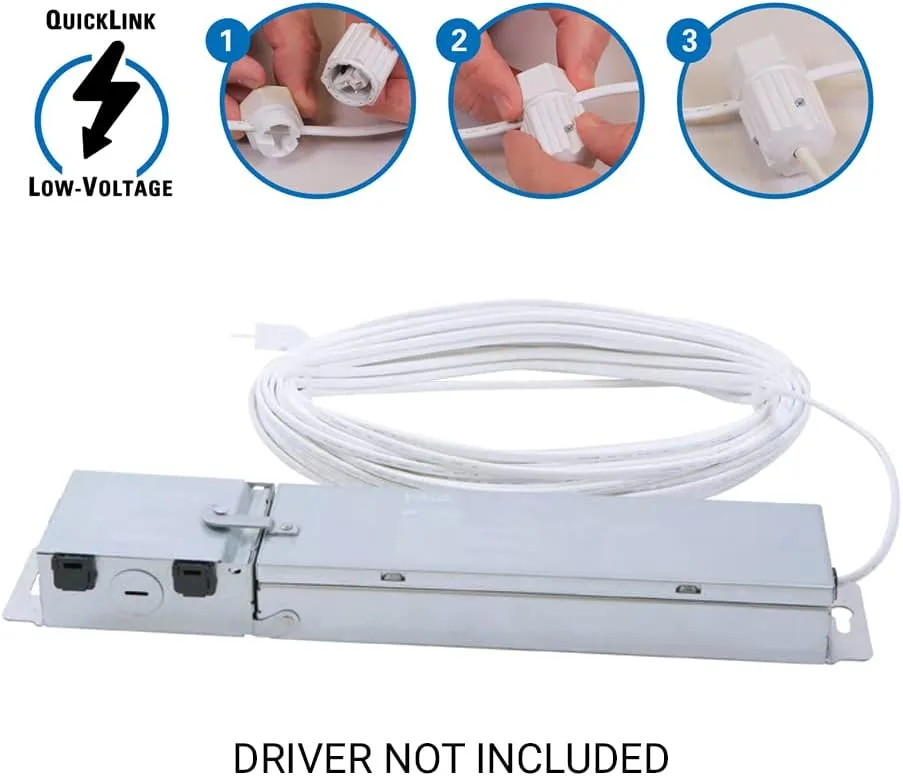

- WHAT’S INCLUDED: (1) 4 Inch HALO Quicklink LED fixture, for use with Halo QuickLink Starter Kit (does not include power supply). Featuring QuickLink connectors for ultra-fast wiring and installation. Power up to 11 light fixtures with one power supply. Self-healing cable allows for repositioning of fixtures. Directly mounts to ceiling and does not require a recessed housing or junction box. Fits in 1/2” to 1-1/4” thick ceilings.

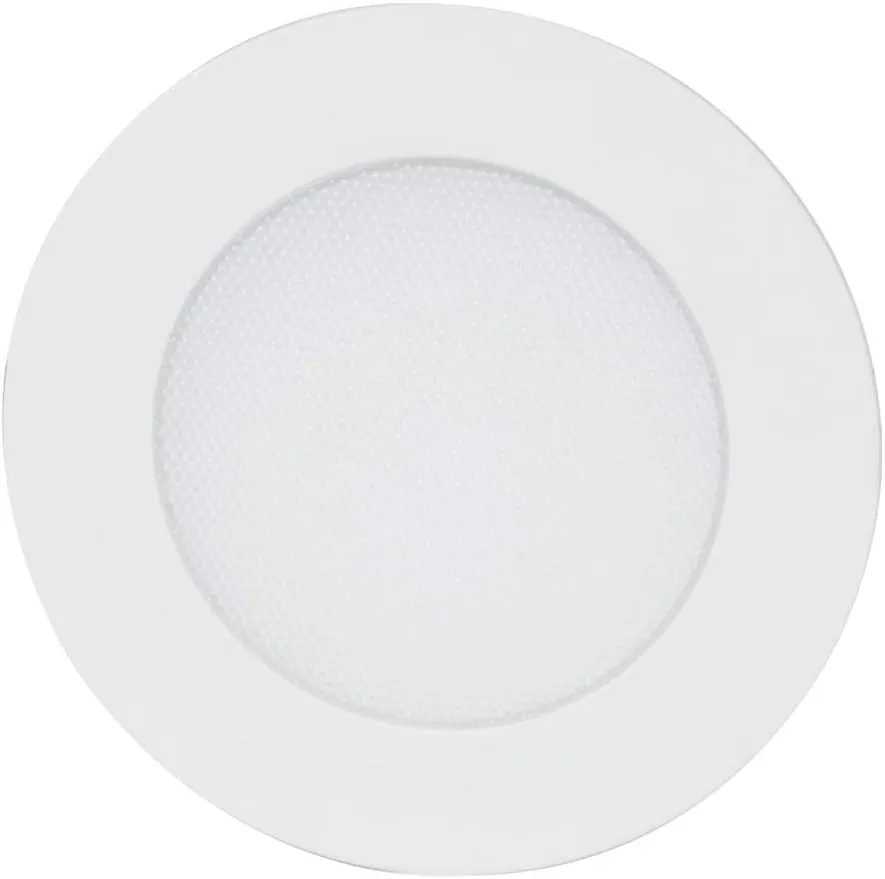

- HIGH QUALITY with HALO: Die-cast aluminum mounting frame with integral flange provides passive thermal cooling. High impact diffuse lens provides shielding to the light guide minimizing pixilation. Closed cell gasket achieves restrictive airflow requirements without caulking. Power supply is non-IC and LED fixtures are IC (insulation contact) rated and Energy Star certified.
- EASY INSTALL: Pre-galvanized steel driver/junction box with captive hinged junction box cover. Hinged junction box for easier installation into ceiling. Three 1⁄2” conduit pry-outs. Two Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box. Accepts NM cable types: 14-2, 14-3, 12-2, 12-3 (U.S.) and 14-2, 14-3, 12-2 (Canadian). Three 4-port push wire nuts with clear caps for quick and reliable mains voltage connections. Integral mounting holes facilitate direct mounting to building structure.
- VERSATILE: Continuous flicker-free dimming down to 5% with select commercial style 0-10V dimmers. 120-277V universal voltage. These Quicklink recessed lighting fixtures are AIR-TITE, wet location-listed, IC-rated, Title 24 compliant and ENERGY STAR certified. 5 Year limited warranty included with purchase.

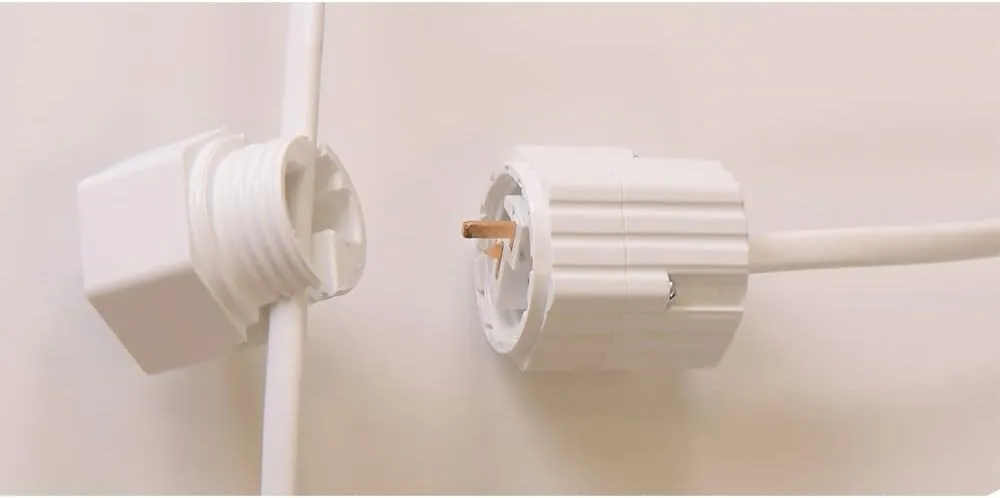

Pre-galvanized steel driver/junction box with captive hinged junction box cover. Hinged junction box for easier installation into ceiling. Three 1⁄2” conduit pry-outs. Two Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box. Accepts NM cable types: 14-2, 14-3, 12-2, 12-3 (U.S.) and 14-2, 14-3, 12-2 (Canadian). Three 4-port push wire nuts with clear caps for quick and reliable mains voltage connections. Integral mounting holes facilitate direct mounting to building structure. Can be installed in 1/2” to 1-1/4” thick ceilings. Heat treated springs hold fixture fitting securely in the ceiling. Halo QuickLink Quick Connectors allow for quick installation of additional fixtures. Plurality of mid power LED’s provides a uniform source with high efficiency and long life. 90 color rendering index (CRI) minimum; R9 greater than 50 provides high color rendering. Field selectable color temperature, select 2700K, 3000K, 3500K, 4000K, 5000K CCT; color accuracy within 4 SDCM. Meets ENERGY STAR® color angular uniformity requirements.

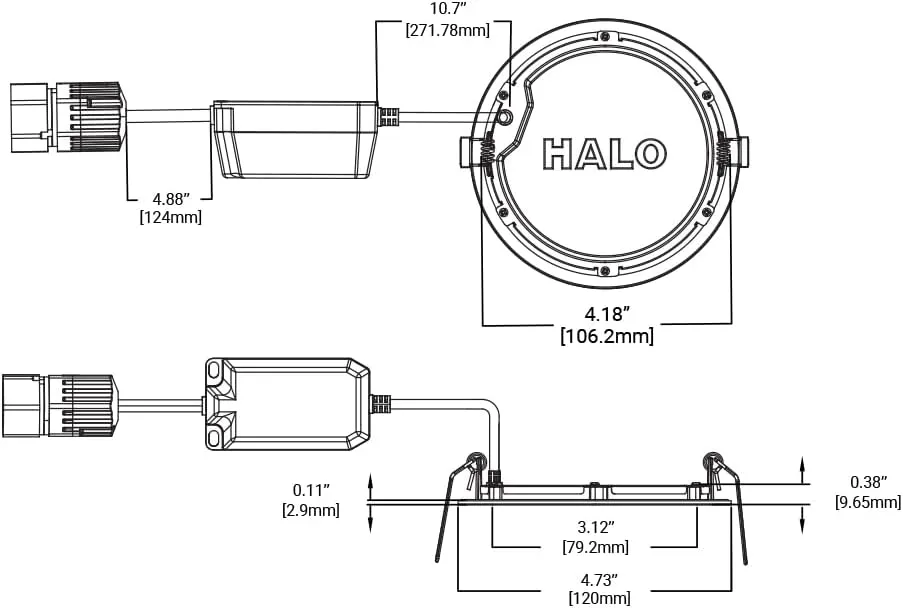

- Product Dimensions : 4.73 x 4.73 x 0.38 inches; 9.91 ounces
- Date First Available : February 22, 2022
- Manufacturer : Cooper Lighting Solutions
- Country of Origin : China
