- Ramset Sliding Gate Operators - Ram 5000 UL 1/2hp
- Max Gate Size 40' Max Gate Weight 1000 lbs.
- Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
- Control Board: easy to configure solid state board with features such as L.E.D.
- Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Ramset Sliding Gate Operators - Ram 5000 UL 1/2hp
Max Gate Size 40' Max Gate Weight 1000 lbs. Motor Continuous duty. 1/2 Hp, 120VAC, 50/60 hz
Dimensions H:25" - L:18 1/2" - W:16 1/2"
Travel Speed 1' Per Second
Electronic Features
Control Board: easy to configure solid state board with features such as L.E.D. readouts to indicate status of operator at all times
Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or closing; reverses for 1 second and stops
Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to reset alarm included
Automatic Timer: can be set from 0 to 60 seconds
Maximum Running Timer: motor shuts off after 60 seconds
Master/Slave: included five wire connection to synchronize movement between two gates
Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal
detector, center loop, telephone entry system, three button station, photo cell, safety edge and magnetic lock

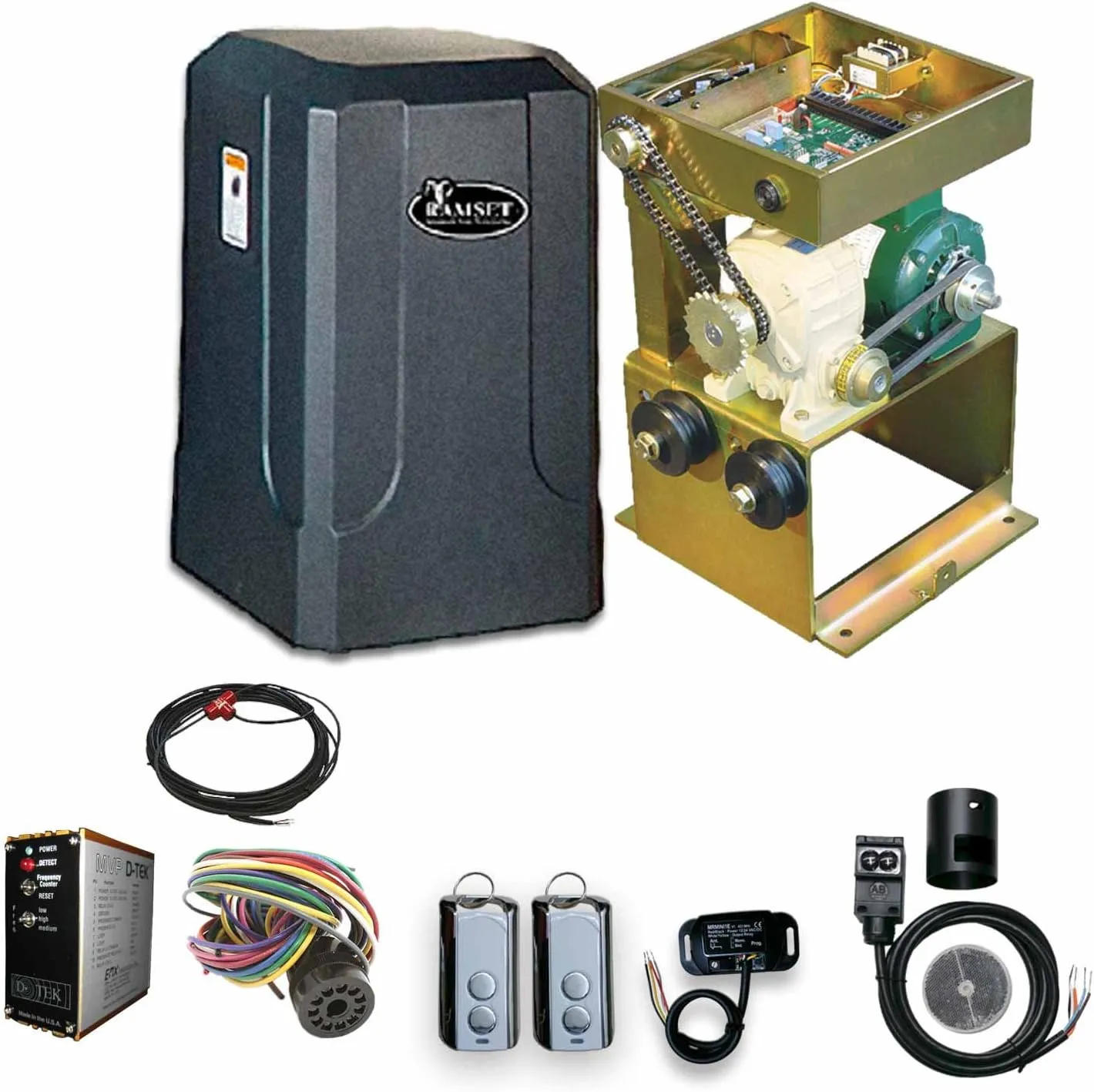

Ram 5000 gate Openers kit 3
Include:
Ram 5000 gate operator
Receiver 433 MHz range of up to 150 feet
Two Mini-Remote Control model 433 MHz 2-Button
Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance
EMX Lite Preformed Loop 4x8
EMX MVP D-TEK loop detector 9V to 220V AC or DC
EMX Loop detectors HAR-11 Pin Harness
